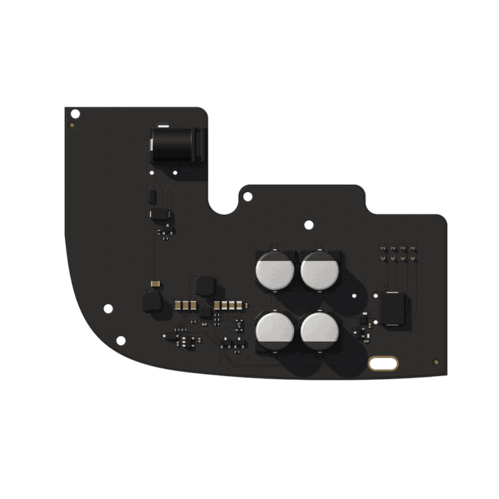

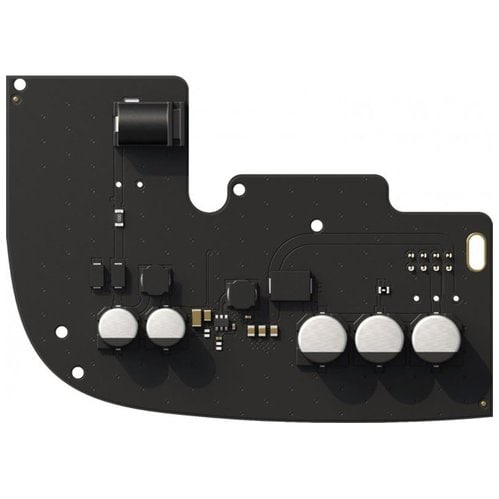

Ajax Wireless Security 6V PSU for Hub 2 / Hub 2 Plus
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Описание
//
https://ajax.systems/products/6vpsu/

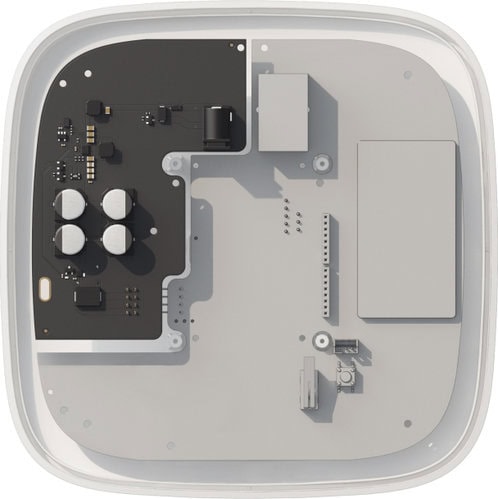

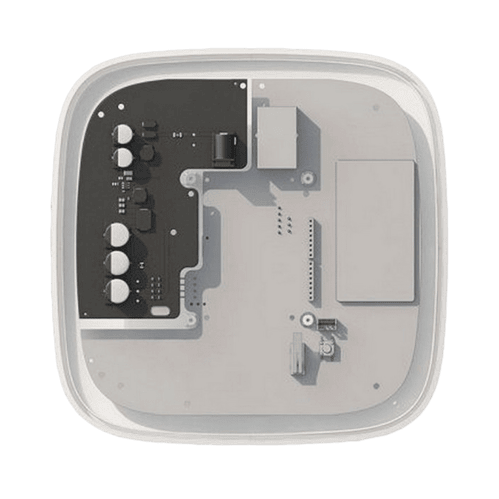

Compatibility: Hub 2 and Hub 2 Plus
Recommended batteries: Zinc air and alkaline batteries with 4.2-16 V operating power
Input voltage: 4.2-16 V
Output voltage: 4.8 V ± 5%
Switch-on voltage: 4.2 V ± 2.5%
Switch-off voltage: 3-3.4 V (depending on the load)
Maximum input current: 2.2 A at 4.2 V; 0.5 A at 16 V
Maximum output current: 1.5 A
Plugging in: Plug socket: 6.5 x 2 mm; Plug: 5.5 x 2.1 mm
Operating temperatures range: From -10°С to +40°С
Operating humidity: Up to 75%
Характеристики
Brand
Ajax
Compatibility
Hub 2 (2 G), Hub 2 (4 G), Hub 2 Plus, ReX 2
Dimensions
98 × 70 × 17 mm
Input current
2,2 А / 0,8 A
Input Voltage Range
4,2 - 10 V
Output current
1,5 А
Output Voltage
4.8 V
Package Contents
6 V PSU, Terminal adapter
Switch-off voltage
3 - 3,4 V
Switch-on voltage
4,2 V
Type | Smart Security
Power Supply Unit
Weight {g}
26
